1. The Ability Ceiling of Graphite and the Silicon Possibility
For years, graphite has worked as the foundation of lithium-ion battery anodes, offering dependable cycling security and reputable manufacturing processes.

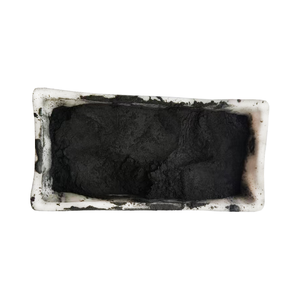

(Battery material)
Yet graphite’s academic particular ability of 372 mAh g ⁻¹ is swiftly approaching its physical limitation, creating a basic traffic jam for next-generation energy storage space applications that require ever-higher power density.
Silicon presents a compelling choice, with an academic capability more than eleven times that of graphite, reaching up to 4,200 mAh g ⁻¹.
This remarkable ability allows batteries that are lighter, smaller, and with the ability of storing substantially extra energy each quantity or weight.
The market reaction has actually been quick and substantial, with worldwide shipments climbing dramatically year over year and production capacity expanding at an unmatched pace.
Sector analysts continually highlight silicon anode products as one of the fastest-growing sectors in the battery supply chain, driven by insatiable need from electric lorries, customer electronics, and arising high-power applications.
This quick growth signals that silicon anode modern technology has decisively crossed the threshold from laboratory research study to industrial-scale commercialization.
2. The Commercialization Inflection Point
The shift from graphite to silicon-based anodes is no more a remote guarantee but an unraveling truth.

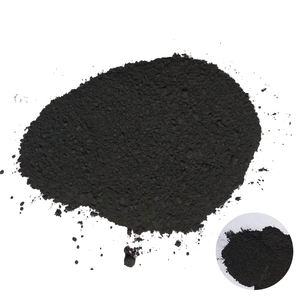

(Graphite)
In very early 2026, a leading battery producer unveiled its latest generation of high-energy-density cells, attaining cell-level power density well above 350 Wh/kg via low-expansion silicon-carbon anodes– a milestone that market onlookers have defined as marking the start of large commercial fostering of silicon anodes.
Significant battery manufacturers and automotive OEMs are currently proactively incorporating silicon anode materials into their product roadmaps, with a number of high-volume production lines already in procedure.
Silicon-graphite compounds with modest silicon loading stand for the lowest-risk commercialization path for the current phase of electric car change, while pure silicon anodes, offering even higher capacity, remain a longer-term proposition as the sector remains to improve making procedures and address durability difficulties.
The application scope is additionally broadening rapidly beyond typical power tools and consumer electronic devices.
Today, premium electric cars, electrical vertical launch and touchdown aircraft, and advanced robotics applications are emerging as substantial growth markets for silicon anodes, since these markets need power density degrees that graphite-based systems can no more support.
Silicon-carbon products are extensively recognized as the secret to crossing this performance obstacle and making it possible for the next generation of light-weight, long-range energy storage.
3. The Technical Difficulties That Held Silicon Back
In spite of its remarkable capacity benefits, silicon has actually encountered 3 interconnected technical obstacles that have actually historically delayed its prevalent commercialization.

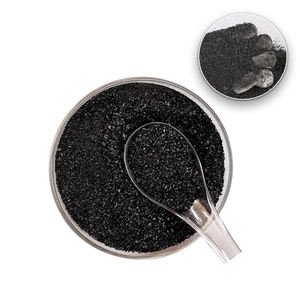

(Silicon Anode Materials)
The initial and most fundamental obstacle is extreme volume growth.
Silicon undergoes volumetric expansion of numerous hundred percent during lithiation, causing mechanical tension that results in fragment fracture, electrode structural collapse, and loss of electric call with present collection agencies.
The 2nd challenge worries the strong electrolyte interphase, a passivation layer that bases on the anode surface area throughout the initial charge cycle.
In silicon anodes, the severe quantity growth triggers this layer to repetitively split and change with each cycle, eating lithium stock and derogatory cycle life via permanent lithium loss and rapid capacity degeneration.
The third challenge is reduced inherent electric conductivity, as silicon’s semiconductor buildings restrict electron transport within the electrode, demanding the consolidation of conductive additives to maintain sufficient price capacity.
These obstacles are adjoined: volume expansion exacerbates SEI instability, and bad conductivity substances the performance degradation from both.
Overcoming this set of three of barriers has needed sustained innovation throughout multiple fronts– from nanostructural style to composite architectures to electrolyte chemistry– and has actually driven the growth of the commercial remedies we see today.
4.Silicon-Carbon Compounds: The Leading Business Option
Silicon-carbon compounds have emerged as the dominant industrial approach to harnessing silicon’s ability while alleviating its disadvantages.

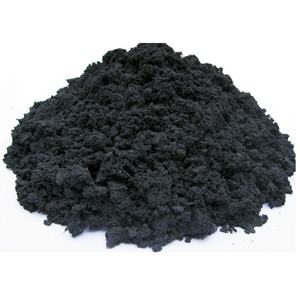

(Anode Materials)
The carbon part serves multiple crucial features: it supplies a conductive matrix that compensates for silicon’s bad electric conductivity, produces buffer space to fit quantity modifications, and reinforces interfacial interactions in between silicon bits and the surrounding electrode framework.
The business momentum behind silicon-carbon anode products is obvious, with manufacturing quantities growing continuously and new manufacturing facilities coming online across the globe.
Several distinctive manufacturing techniques exist for silicon-carbon compounds, each with its very own benefits.
CVD-based silicon-carbon materials entail depositing silicon onto carbon substrates with chemical vapor deposition, making it possible for accurate control over silicon web content and circulation, and technological growth in this room is concentrating on boosting silicon loading, optimizing carbon layer layout, and improving initial coulombic performance and cycle security.
Nano-porous silicon-carbon compounds offer an additional pathway, where the porous framework gives internal void area that accommodates silicon development inward instead of outward, reducing stress and anxiety on the general electrode architecture.
Business are additionally exploring pre-lithiated silicon-carbon materials, which make up for first lithium intake throughout SEI formation, enhancing first-cycle performance and total power density.
The diversity of these methods shows the market’s acknowledgment that no solitary solution fits all applications– different silicon loadings, fragment sizes, and composite architectures match different performance needs and expense targets, and continuous research study remains to improve each of these routes.
5. The Vital Function of Advanced Binders in Silicon Anode Performance
The binder system in a silicon anode is far more than a glue– it is an active component that essentially establishes electrode integrity and biking security.

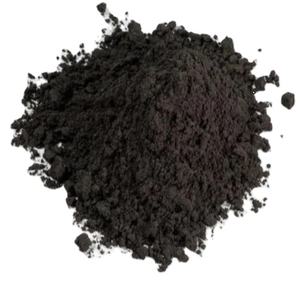

( Battery material)
Standard graphite anodes count on a typical binder system incorporating styrene-butadiene rubber with carboxymethyl cellulose, however, for silicon-containing anodes, this system typically proves inadequate in enduring the repeated anxiety from quantity modifications.
The binder should accommodate huge mechanical strain, maintain attachment between silicon fragments and the current collector with thousands of expansion-contraction cycles, and add to preserving the electrical network within the electrode.
Polyacrylic acid has emerged as a superior binder for silicon anodes due to its adaptability and solid bond homes, with many studies demonstrating that electrodes employing PAA plus SBR binders continually provide the very best efficiency, attaining high initial coulombic effectiveness, high reversible capability, and steady capacity retention over extended cycling.
Beyond PAA, scientists are investigating ternary composite binders that integrate several polymer elements to accomplish synergistic effects, and some have actually reported ternary composite binders developed especially for silicon-carbon blend anodes.
The binder market is responding to these developing demands, with CMC/SBR systems maximized for silicon blends currently leading the market as a result of their ability to form secure, high-capacity compounds, while water-based binders consisting of SBR, CMC, and PAA are increasingly applied to next-generation silicon-based electrodes, reflecting the sector’s push towards a lot more lasting manufacturing processes.
Binder design has actually additionally emerged as a crucial strategy for alleviating the coulombic effectiveness trough– the particular dip in effectiveness brought on by silicon volume expansion, duplicated SEI renewal, and consistent lithium loss– as advanced binder designs preserve structural integrity and promote secure SEI formation, directly attending to the origin of ability discolor.
6. Conductive Ingredients: Developing the Electrical Highway
Silicon’s low innate electrical conductivity indicates that conductive ingredients are not optional– they are crucial for attaining sensible rate capacity and cycle life.
(Silicon Anode Materials)
Traditional carbon black has long worked as the conventional conductive additive in battery electrodes, but the needs of silicon anodes have pushed the market towards more advanced carbon designs.
Carbon nanotubes and graphene have emerged as vital conductive ingredients driving technical innovation in this area, exhibiting superior electric conductivity, exceptional mechanical flexibility, and distinct dimensional benefits contrasted to typical carbon black.
CNTs give one-dimensional conductive paths that connect between silicon bits, while graphene uses two-dimensional conductive sheets that can wrap around and interconnect fragments, and three-dimensional carbon skeletons consisting of both carbon nanotubes and graphene sheets serve as a conductive matrix while additionally giving barrier space to accommodate quantity modifications throughout cost and discharge.
The double carbon network strategy has shown specific assurance, with research showing that silicon nanoparticles efficiently enveloped in minimized graphene oxide and carbon nanotube interlaced networks– with high surface area, big pore quantity, and bountiful permeable structure– attain improved lithium storage kinetics.
Advanced conductive ingredients also contribute to SEI stability, as fluoride-doped carbon conductive additives enable the building and construction of LiF-rich SEI layers on silicon anodes, lowering general anode quantity growth and improving biking security without inducing harmful side responses.
The expanding need for high-performance conductive additives is reflected in the rapid expansion of manufacturing capability for customized carbon products, especially permeable carbons made particularly for CVD silicon-carbon anodes, which are seeing phenomenal growth rates as manufacturers seek to enhance their silicon anode solutions.
The selection of conductive ingredients have to be customized to the specific silicon particle dimension, morphology, and composite design utilized in each application– for silicon nanoparticles listed below a specific limit, carbon nanotube networks can provide effective electron transportation without excessive additive loading, while for bigger silicon bits or higher silicon material anodes, hybrid conductive networks combining several carbon designs might be needed to maintain performance.
7. The Evolving Supply Chain and Manufacturing Landscape
As silicon anode commercialization increases, the supply chain is undergoing rapid change to satisfy expanding demand.
(Anode Materials)
Global crucial battery silicon anode product makers include established chemical firms and specialized product suppliers, with the top players collectively holding a considerable share of the market, while new entrants remain to emerge with innovative manufacturing modern technologies.
Production capacity is being built throughout several areas, with numerous major facilities having commenced commercial-scale procedures in recent months, and additional capacity developments are actively underway.
For example, one leading supplier has begun EV-scale manufacturing of its sophisticated silicon-carbon product at a new factory developed for significant yearly result, equivalent to a considerable battery capacity, and this material has actually shown compatibility with multiple cathode chemistries, allowing both high energy thickness and ultra-fast billing capabilities.
Other business have introduced supply arrangements for silicon-carbon compounds created as drop-in replacements for graphite in existing lithium-ion cell manufacturing processes, while joint endeavors in between material professionals and chemical titans are progressing the industrialization of next-generation composite anode products.
Residential production capability is additionally broadening swiftly in various regions, with numerous firms reporting enhancing regular monthly deliveries and introducing brand-new assembly line that have already provided samples to leading battery suppliers for efficiency testing.
The upstream basic material supply chain is likewise evolving, with crucial resources including metallurgical silicon, silane, graphite, and permeable carbon, and providers ensuring stable material supply and quality uniformity with specialized production centers.
Worldwide demand for silane, particularly, is being spurred by silicon anode production development, as silane-based courses stay a key production path for many manufacturers, while different manufacturing strategies– such as low-temperature decrease procedures– supply the capacity for even more affordable and lasting manufacturing.
Techno-economic analyses have shown that these cutting-edge paths can significantly decrease the cost and ecological impact of silicon manufacturing, making them eye-catching alternatives for the next wave of capacity expansion.
As the entire community– from raw materials to complete anode powders– continues to develop, the silicon anode sector is poised for continual development, with makers and providers working closely to resolve technological difficulties, scale manufacturing, and bring high-performance, cost-competitive options to the global battery market.
At Nanotrun, we are devoted to advancing silicon anode modern technology via our detailed profile of high-performance products, consisting of high-purity silicon-based powders, custom-formulated silicon-carbon composites, and progressed conductive additive services crafted to fulfill the demanding requirements of next-generation lithium-ion batteries.
( Battery material)
We comprehend that the transition to silicon anodes is not an easy material alternative however a system-level improvement that needs careful optimization of every element, and our group works closely with clients to develop customized solutions that address their particular performance targets, manufacturing restrictions, and price objectives.
As the silicon anode market continues its rapid growth, Nanotrun stands prepared to sustain battery producers, cell producers, and OEMs in making the shift from graphite to silicon-enhanced electrodes, and we invite you to discover how our sophisticated product solutions can aid you attain higher power density, longer cycle life, and premium battery performance.
Contact us today to discuss your silicon anode product needs and find the Nanotrun distinction.
